All-in-One Video Conference Display Solution
For customers building conference tablets, large meeting displays and all-in-one products, HONGYIN TECH offers a turnkey RK3588-based solution: multi-display output enables single-unit multi-screen setups, microphone arrays with echo cancellation deliver clear pickup, hardware codecs keep video meetings smooth, and the stack is adapted to mainstream conferencing software. The complete unit supports custom appearance, structure and I/O, with end-to-end support from requirement review to small-batch delivery and platform recommendations within 48 hours.
Pain Points
- General-purpose SoCs have weak codec capability, causing stutter and latency in multi-party meetings
- Standalone audio boxes for pickup and echo processing raise BOM cost and cabling complexity
- Conference products must adapt to multiple meeting apps, making compatibility validation a heavy burden
- Structure shops lack electronics expertise while solution houses skip mechanical work, so turnkey customization falls through the cracks
- Conference display products iterate fast, demanding a partner with rapid modification and delivery capability

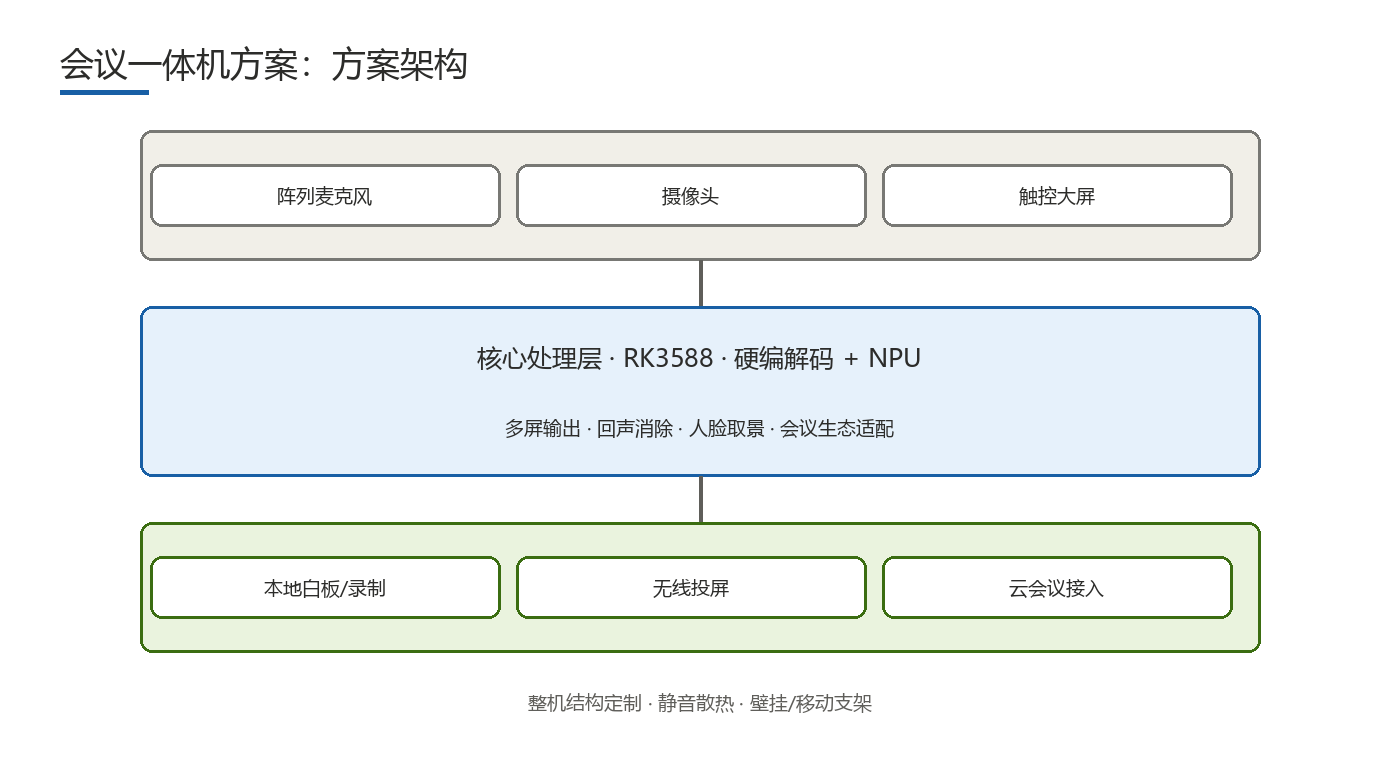

Recommended Hardware Configuration
| SoC platform | RK3588 (4x A76 + 4x A55, 8K decode with multi-channel hardware codec) for HD video conferencing and simultaneous multi-display; see chipset datasheet for details |
|---|---|
| Display output | Multiple HDMI/DP/eDP outputs supporting one-unit multi-screen setups, video walls and touch back-channel, fitting conference tablet and large-display form factors |
| Audio system | Microphone-array pickup interfaces with audio codec configuration, paired with echo cancellation and noise reduction for clear far-field pickup |
| Video input | MIPI-CSI/USB camera inputs supporting conferencing cameras and e-whiteboard capture |
| Networking & I/O | GbE, Wi-Fi/BT, USB Type-C (optional DP alt mode) and RS232/TCP control interfaces for meeting-room connectivity and AV control integration |
| Enclosure & thermal | Ultra-slim enclosure with fanless thermal design; appearance customizable to customer industrial design |
Software Capabilities
- OS: Android as the primary platform with custom launcher for direct boot into the meeting interface
- AV processing: hardware codecs reduce CPU load, with an audio chain integrating echo cancellation, noise suppression and auto gain
- Conferencing ecosystem adaptation: compatibility validation of screen sharing, AV and peripherals with mainstream meeting apps, item by item
- Wireless casting: AirPlay/DLNA/Miracast-class casting protocols with reverse touch control
- Device management: remote device management, OTA updates and centralized configuration for fleet meeting-room deployment
Deliverables & Services
- Free requirement review: define display specs, conferencing app list and structure requirements, then deliver a turnkey solution and BOM proposal
- Hardware design: complete-unit hardware, audio chain, multi-display output and structure/appearance design
- BSP/driver/algorithm adaptation: OS customization, touch and audio drivers, and conferencing app compatibility adaptation
- Prototype integration: full-unit debugging and validation in real meeting rooms, with subjective AV evaluation reports
- Small-batch and volume support: low MOQ, appearance-part quality control and production ramp-up support
FAQ
Q：Is RK3588 powerful enough for video conferencing?
RK3588 integrates multi-channel hardware codec units, so multi-party video streams run mainly through hardware encode/decode with low CPU load, ensuring smooth meetings. We can share test data for specific stream-count and resolution combinations. Submit your requirements and get recommendations within 48 hours.
Q：Are pickup and echo cancellation included in the solution?
Yes. The turnkey solution includes microphone-array hardware design plus integrated echo cancellation and noise suppression, tuned for your room size and layout. If you already prefer a specific audio algorithm, we can discuss integration during the free requirement review.
Q：We need adaptation to specific conferencing apps. How does that work?
Once you provide the list of target conferencing apps, we validate installation, AV calls, casting and peripheral compatibility item by item during prototyping and deliver a compatibility test report. Issues found during adaptation are handled through direct engineer contact for fast resolution.
Q：Can the appearance and structure follow our own design?
Yes. With the core hardware platform unchanged, we can customize appearance, structural parts and I/O layout to your industrial design, and support tooling and appearance-part sampling. Customization scope and lead time are assessed after the free requirement review.
